How to add MikroTik to Noch Wired

If you are managing MikroTik routers and want them to work seamlessly with Noch Wired, this guide will walk you through the setup process. We will automate the configuration by copying and and running a configuration script that will configure your device to work with Noch Wired

How To

Contributor By:

Enock Simiyu

22 May,2025, 20:38

How to add MikroTik to Noch Wired

Prerequisites

Before you begin, ensure you have the following:

A MikroTik router running RouterOS (tested on v6 and above)
Access to Noch Wired Dashboard. Click here to access Noch Wired Dashboard.
A working internet connection on the MikroTik device
Winbox or SSH access to the MikroTik router. We recommend using winbox to setup your mikrotik device. Click here to download and install WinBox before proceeding.

Step 1: Understanding the configuration Script

We provide a register_device.rsc script that configures the MikroTik router with the necessary settings to work with Noch Wired. The script typically includes:

Setting up the correct DHCP or static IP configuration
Defining OpenVPN configuration settings that will be used by Noch Wired services to manage and apply configuration changes to your device.
Setting up firewall rules to allow Noch Wired server to communicate with your devices.
Registering the router with your Noch Wired.

Step 2: Copy the configuration script

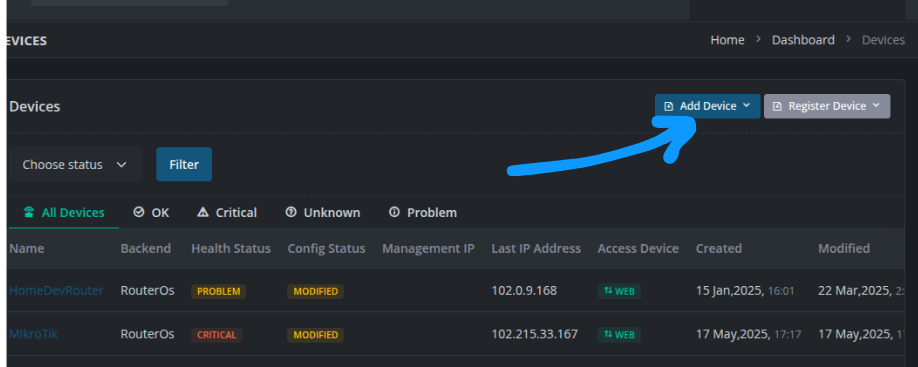

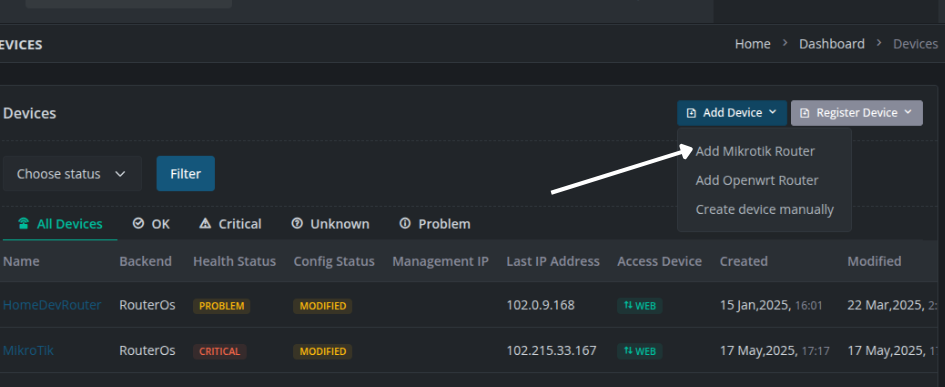

Click on “Add Device” button and then “Add mikrotik Router” button on the devices page. Click here to access the devices page.

An Image showing the button to click to copy the mikrotik configuration script

Click on “Add Mikrotik Router” button.

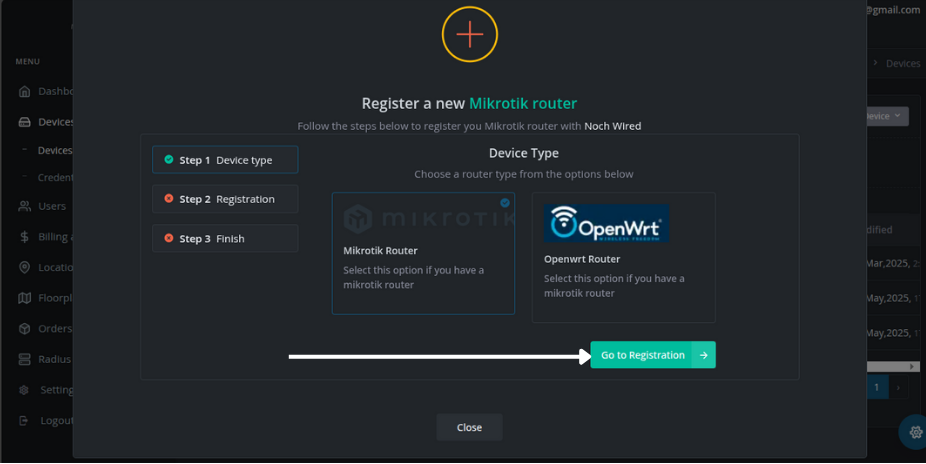

Click on “Go to registration” button.

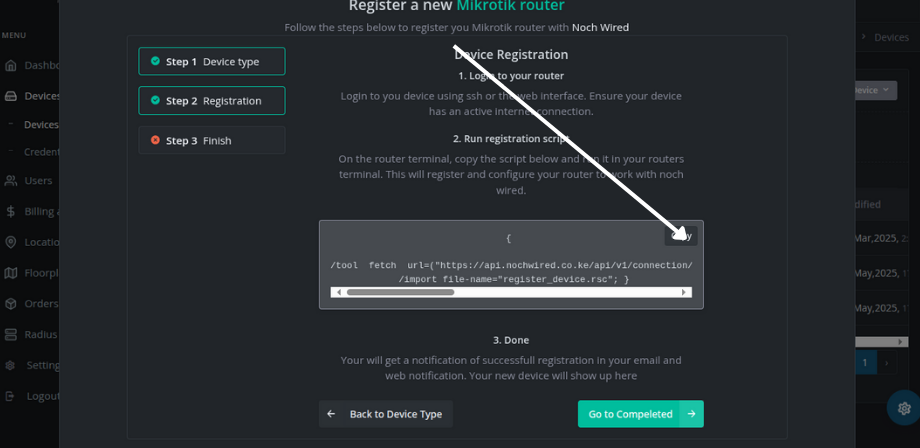

Click on the “Copy button” to copy the configuration script on your clip board.

An Image showing the downloaded registration script in the downloads folder

Step 3: Running The Device Registration script

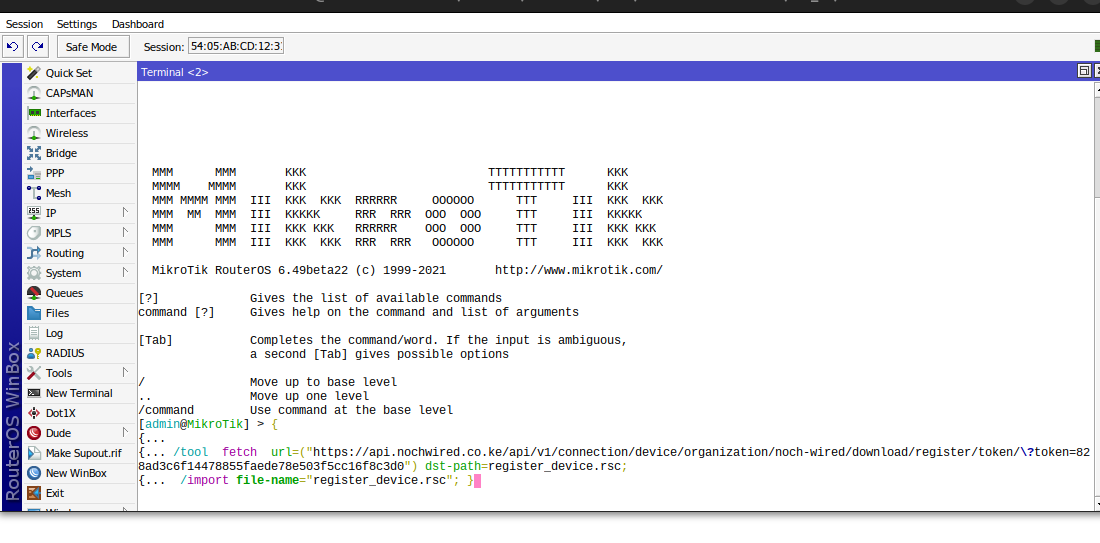

Click Enter button to run the script.

This will apply the necessary settings to configure the router for Noch Wired.

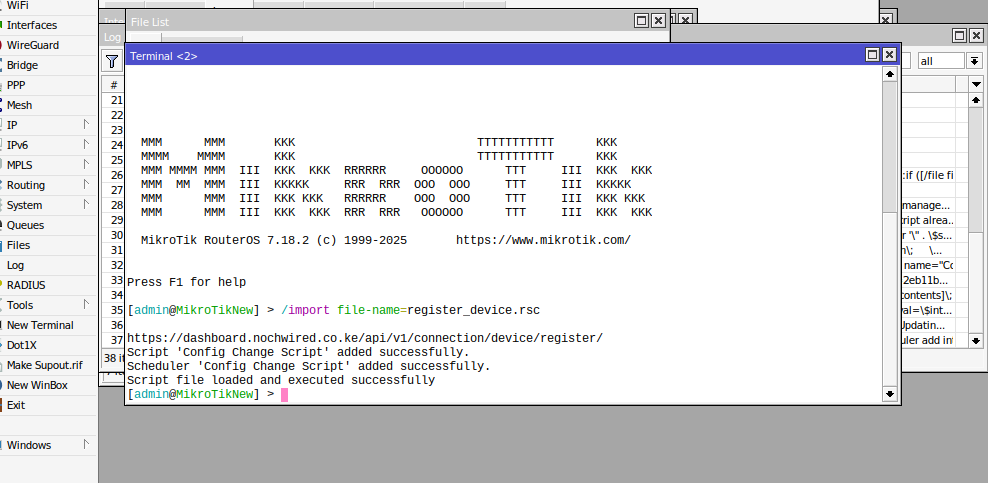

You should get the response in the image above after running the registration configuration file.

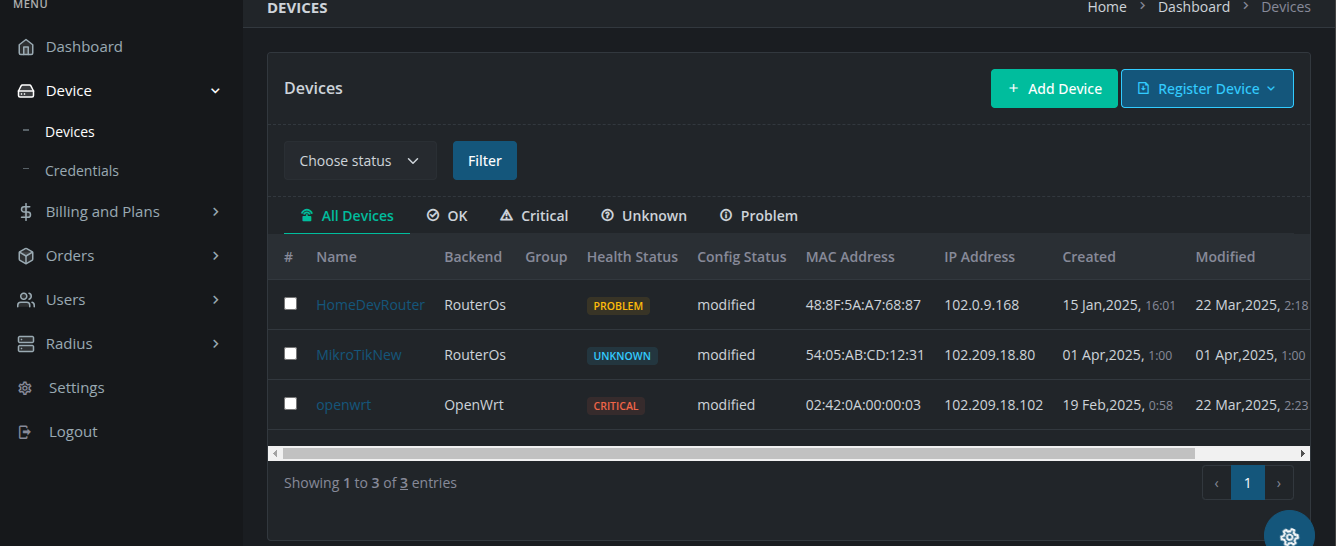

When you go back to Noch Wired Dashboard in the devices page you should be able to see the new device that was just registered.

Step 4: Verify Configuration

After running the script, check if the router has successfully registered with Noch Wired. You will get a web notification and an email notification that the new device has registered successfully. You should also be able to see that a new device has been created in the dashboard.

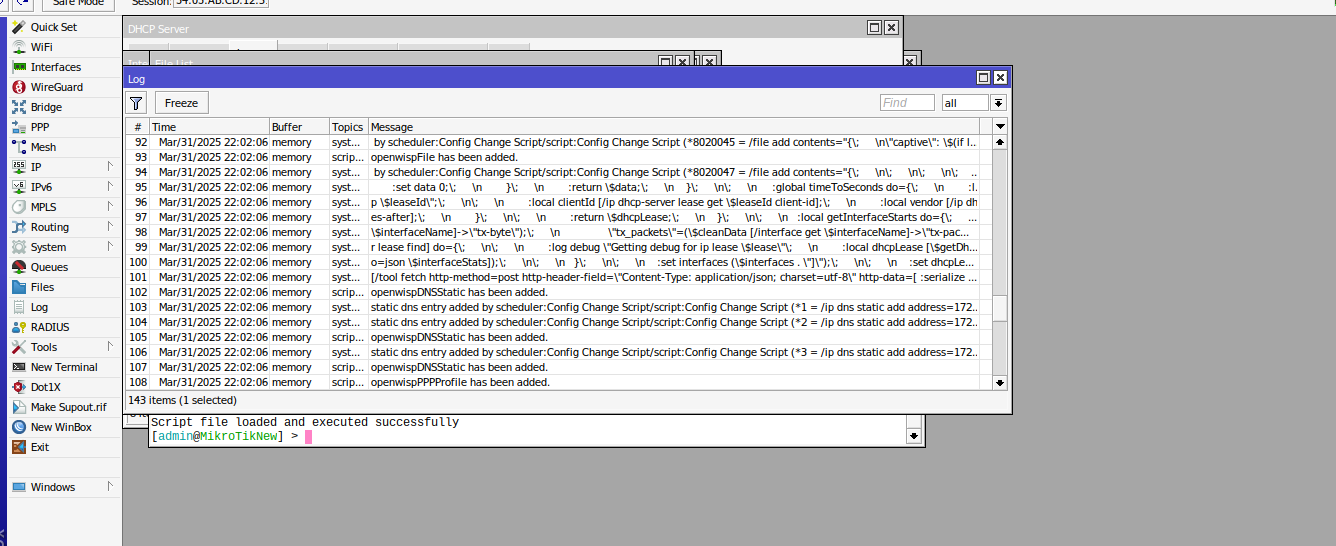

On the device logs, you should be able to view the scrip setting up the configuration on your router.

Conclusion

This tutorial provides an easy way to configure MikroTik routers to work with OpenWISP. Automating the setup with a script simplifies deployment and ensures consistency across multiple routers. If you have any questions or need further assistance, feel free to reach out!

Happy networking!
